Bootstrapping your own Asset Link

To bootstrap your own Asset Link, a template using the well-known cookiecutter is available in this repository.

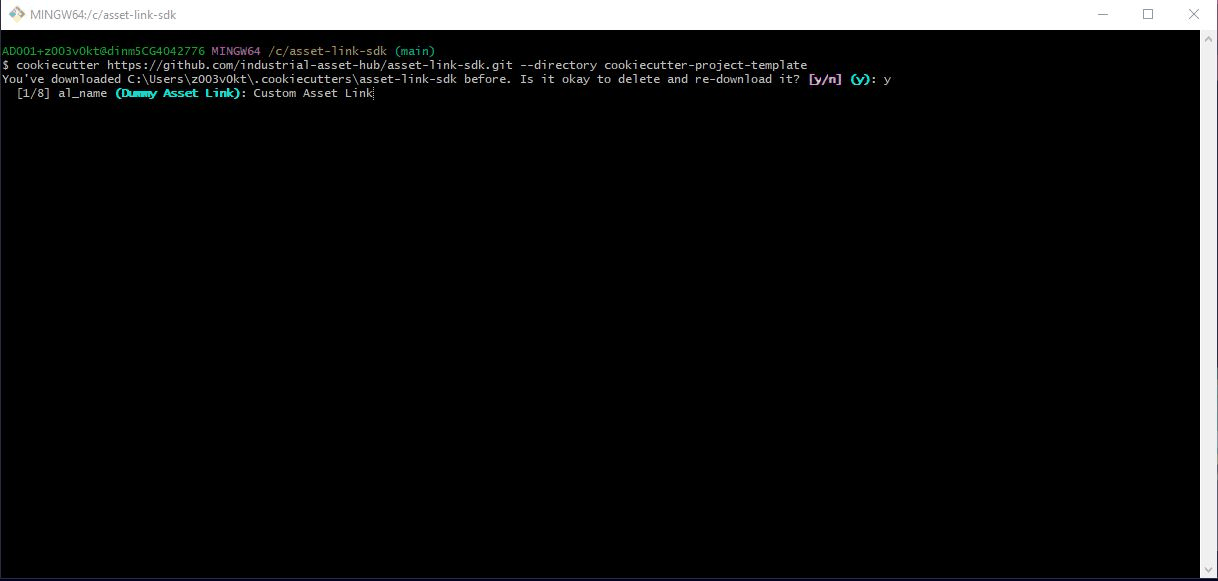

Run the following command, which provides a text-based questionnaire to set up a skeleton.

$ cookiecutter https://github.com/industrial-asset-hub/asset-link-sdk.git
--directory cookiecutter-project-template [optional -c "branch"]
[1/8] al_name (Dummy Asset Link): Custom Asset Link
[2/8] al_id (machinebuilder.cdm.al.dummy): machinebuilder.cdm.al.custom
[3/8] al_project (dummy-asset-link): custom-asset-link
[4/8] author_name (David Device Builder): Device Builder
[5/8] author_email (david@david-builder.local): me@device-builder.local
[6/8] company (Machine Builder AG): Machine Builder AG
[7/8] company_url (https://www.device-builder.local): https://www.device-builder.local
[8/8] year (2024): 2024

Note: As a recommendation, the Asset Link naming should include the identifier “Asset Link”. This ensures a consistent and recognisable naming convention for created Asset Link. For example: Custom Asset Link, Default Asset Link.

There should now be a directory called custom-asset-link. The directory contains a number of files. The Asset Link is ready to run out of the box. There is no fancy logic inside.

To start the Asset Link, execute inside the generated directory:

# Synchronize Go modules
$ go mod tidy

# Execute
$ go run main.go --grpc-server-address=$(hostname -i):8080 --grpc-server-endpoint-address=$(hostname) --grpc-registry-address=localhost:50051

# (Example) If grpc-server-registry is running in docker and asset-link in localhost
$ go run main.go --grpc-server-address=localhost:8081 --grpc-server-endpoint-address=host.docker.internal --grpc-registry-address=localhost:50051
[...]

This registers the Asset Link as custom-asset-link in the registry provided by your gateway, e.g. the IAH Asset Gateway. The Asset Link starts a gRPC server on your machine on port 8080. The example Asset Link creates a device whenever a discovery is started via the gRPC interface or the CLI.

Security remark:
The command above binds the Asset Link to a publicly accessible IP address on your host. Please ensure that the port is protected from external access.

Handler Implementation and Interfaces

To implement your own discovery logic, open the handler/handler.go file. This Go module contains the core implementations for Asset Link functionality, including device discovery and configuration handling.

Below are the supported interfaces and their details.

Discovery Interface (enables device discovery and consists of three functions):

Discover: This interface handles device discovery requests. It ensures only one discovery job runs at a time, retrieves option and filter settings from the provided configuration, performs device discovery logic, and publishes discovered devices using the provided data publisher.
GetSupportedOptions: This interface returns a list of supported discovery options, describing which configuration options can be used during device discovery. Example: interface to scan, timeout
GetSupportedFilters: This interface returns a list of supported discovery filters, describing which filter criteria can be applied to limit or customize the discovery process. Example: IP, MAC, device type

Once the interfaces are implemented, the specific Asset Link uses the assetLinkBuilder to construct an AssetLink with the implemented features. On AssetLink.Start(), the Asset Link will start the grpc server, allowing device management to interact with it.

Identifiers Interface (enables getting identifiers of a device and consists of one function):

GetIdentifiers: This interface retrieves identifiers for a specific device based on paramater_json using credentials, performs logic to obtain the identifiers, and returns them in a structured format.

You can customize functions such as Discover, GetIdentifiers, GetSupportedOptions and GetSupportedFilters to fit your specific requirements for actual device discovery and to retrieve information about the discovery parameters that are supported by the specific Asset Link.

Distribution and Deployment

Once you have implemented your handler logic, you can package and distribute it using GoReleaser. For even faster results, use GoReleaser, which generates binaries for Linux/Windows and various architectures, as well as a Debian package. This package contains the binary, including a systemd service, that starts the driver immediately after the name. The name of the systemd service is the same as that of the Asset Link.

$ goreleaser release --snapshot --clean
$ ls dist/
# Contains statically linked binaries
custom-asset-link_$OS_$ARCHITECTURE/[...]

# Ready-to-use Debian packages
custom-asset-link_0.0.1-next_linux_amd64.deb
custom-asset-link_0.0.1-next_linux_arm64.deb

Example Debian installation:

$ dpkg -i dist/custom-asset-link_0.0.1-next_linux_amd64.deb
[...]
$ systemctl status custom-asset-link
[...]
$ journalctl logs -f -u custom-asset-link
[...]
